MODEL |
NCM-CP16 |
|
MONITOR SIZE |
15.6 inches |
|
Output video |
16:9, 1920*1080P, 50/60fps |
|
Effective pixels |
≥ 2 mega pixels |
|
Scanning system |
Progressive scanning, ≥700tvl |
|
Image settings |
AWB, Freeze, Zoom, Brightness, Color adjustment,… etc. |
|
Record format |
MP4 |
|
Record device |
USB |
|
LIGHT SYSTEM |
|
|
Led lamp |
American luminus |
|
Illumination |
2,000,000 Lux |
|
Color temperature |
5800-6500K |
|
CRI |
＞90 |
|
Lamp life |
60000 hours |
|
DISPLAY MONITOR |
|
|
Screen standard |
Medical class |
|
Brightness |
450Cd/m² |
|
Angle of view |
178°Full view |
|
Display colors |
16.2 millions |
|
CAMERA HEAD |
|
|
Camera head dimension |
Length: 114mm±0.5mm Diameter: 33.5mm±0.2mm |
|
Camera head weight |
340g |
|
Camera head button |
AWB, Freeze, Bright+, Bright- |
|

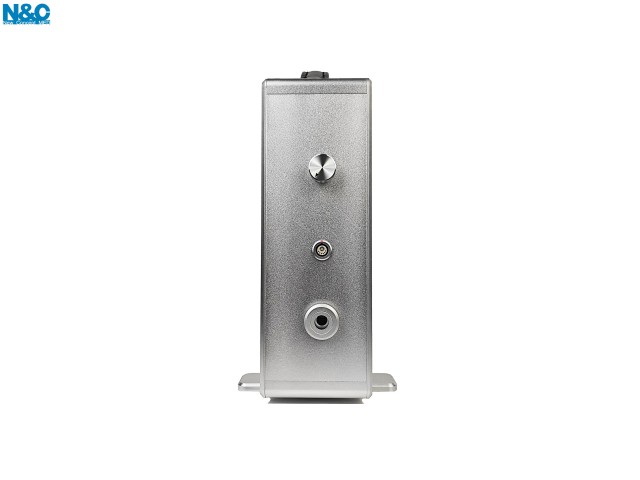

PROCESSOR UNIT |
|
|
Processor output |
HDMI+DVI+SDI+CVBS+USB |
|
Processor button |
AWB, Freeze, Record, Photo, Zoom |
|
Processor dimension |
430*350*110mm |
|
Processor weight |
6.4KG |
