4K Ultra HD Output
Sharp, detailed images for precise observation.
Touch & Mouse Menu Control
Intuitive interface, quick and easy to use.
PC Connectivity
Edit and print patient reports directly on your computer.
Photo & Video Capture via PC
One-click capture in 4K quality for documentation and telemedicine.
IP67 Waterproof Camera Head
Supports low-temperature plasma soaking disinfection.
Anti-Interference Housing
Stable performance near high-frequency equipment.
|

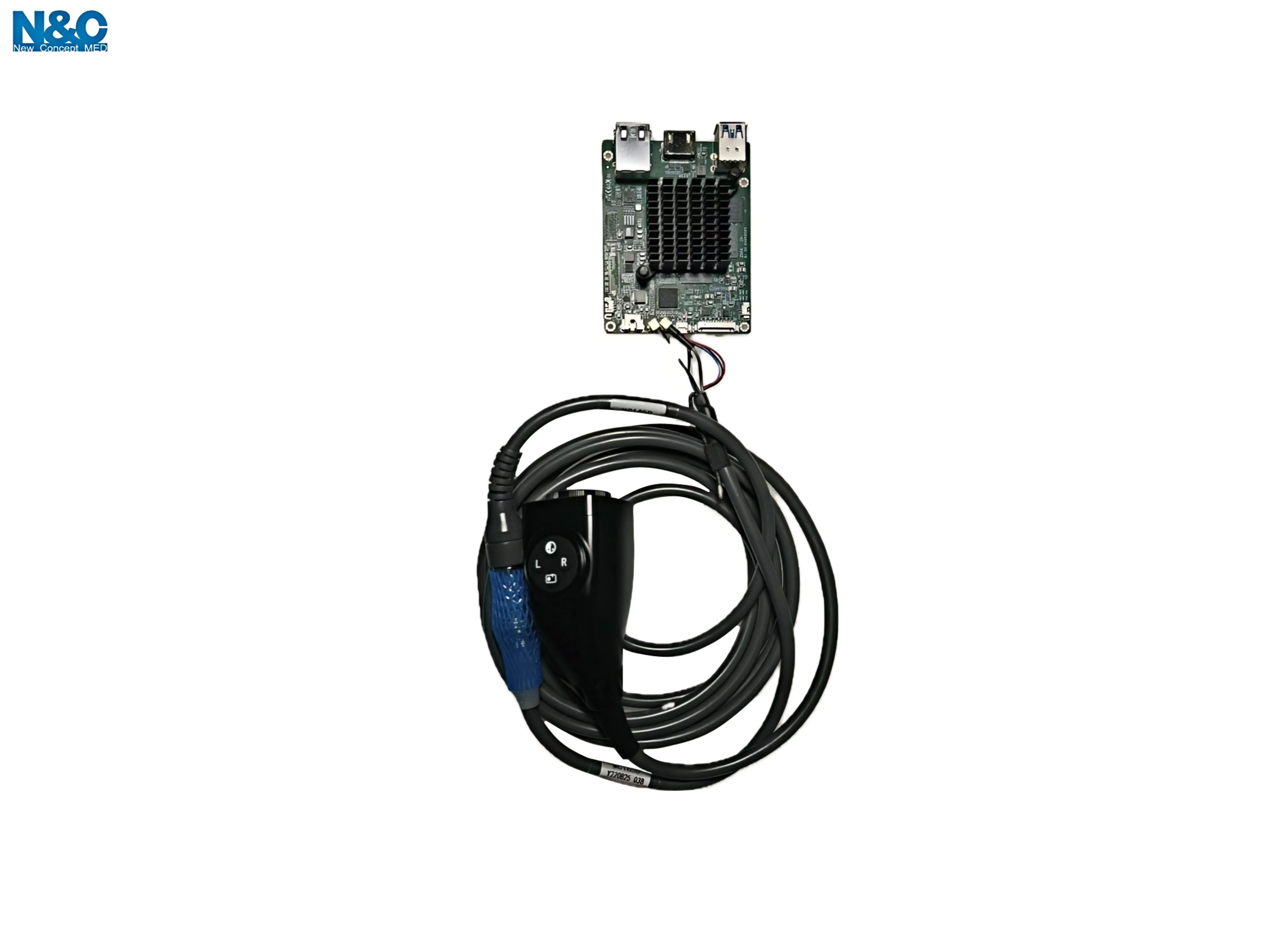

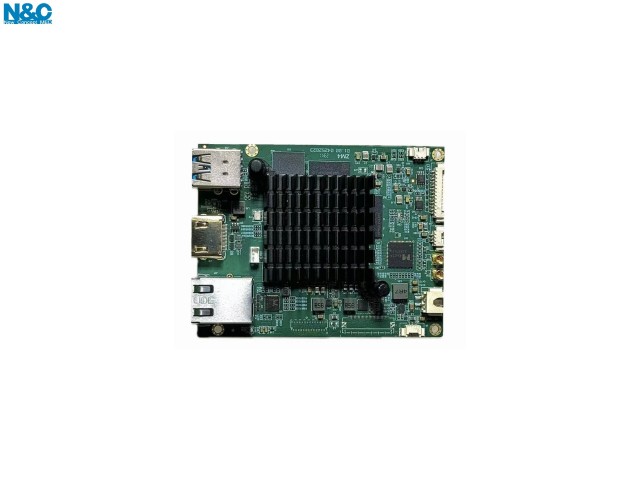

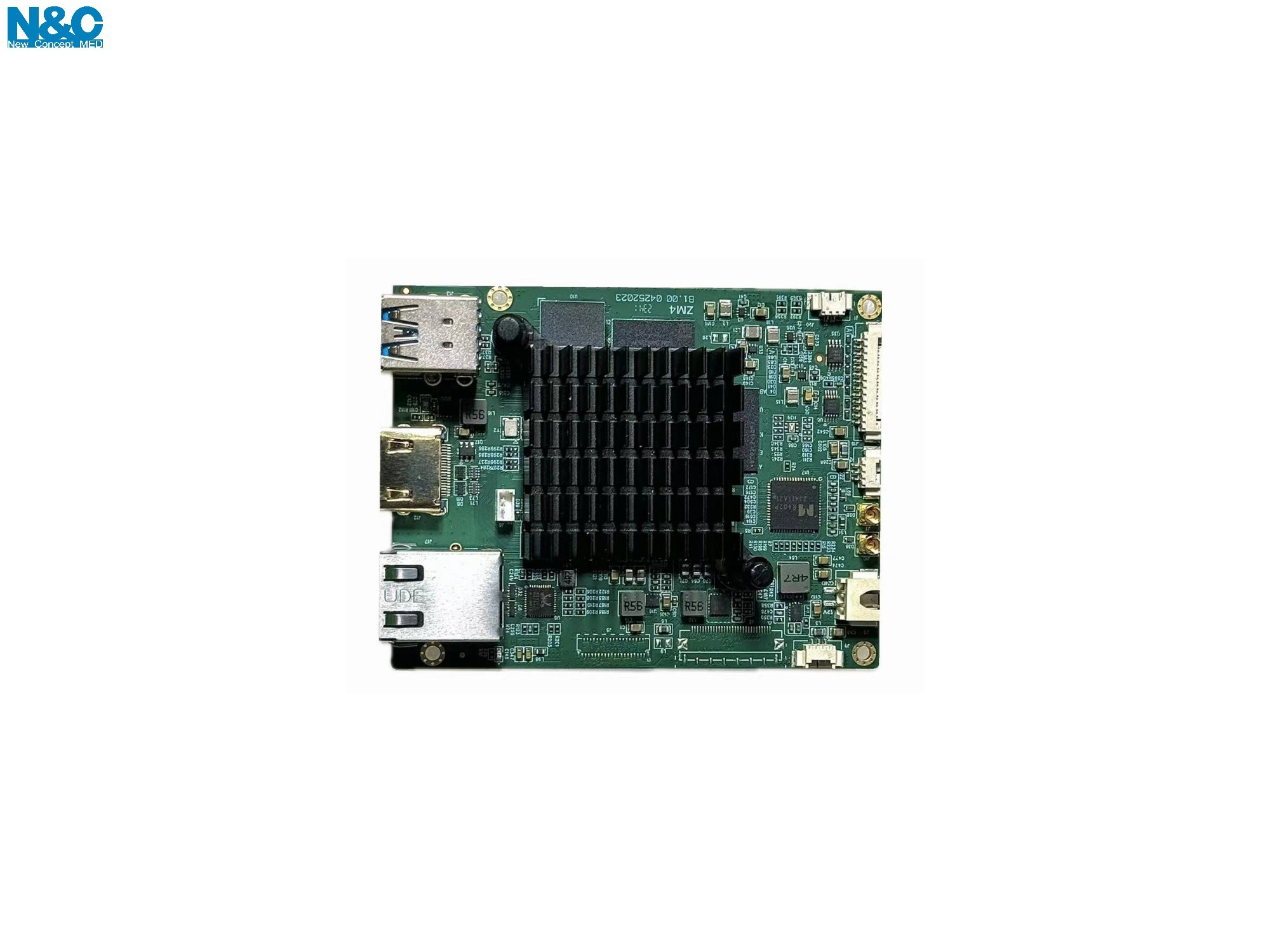

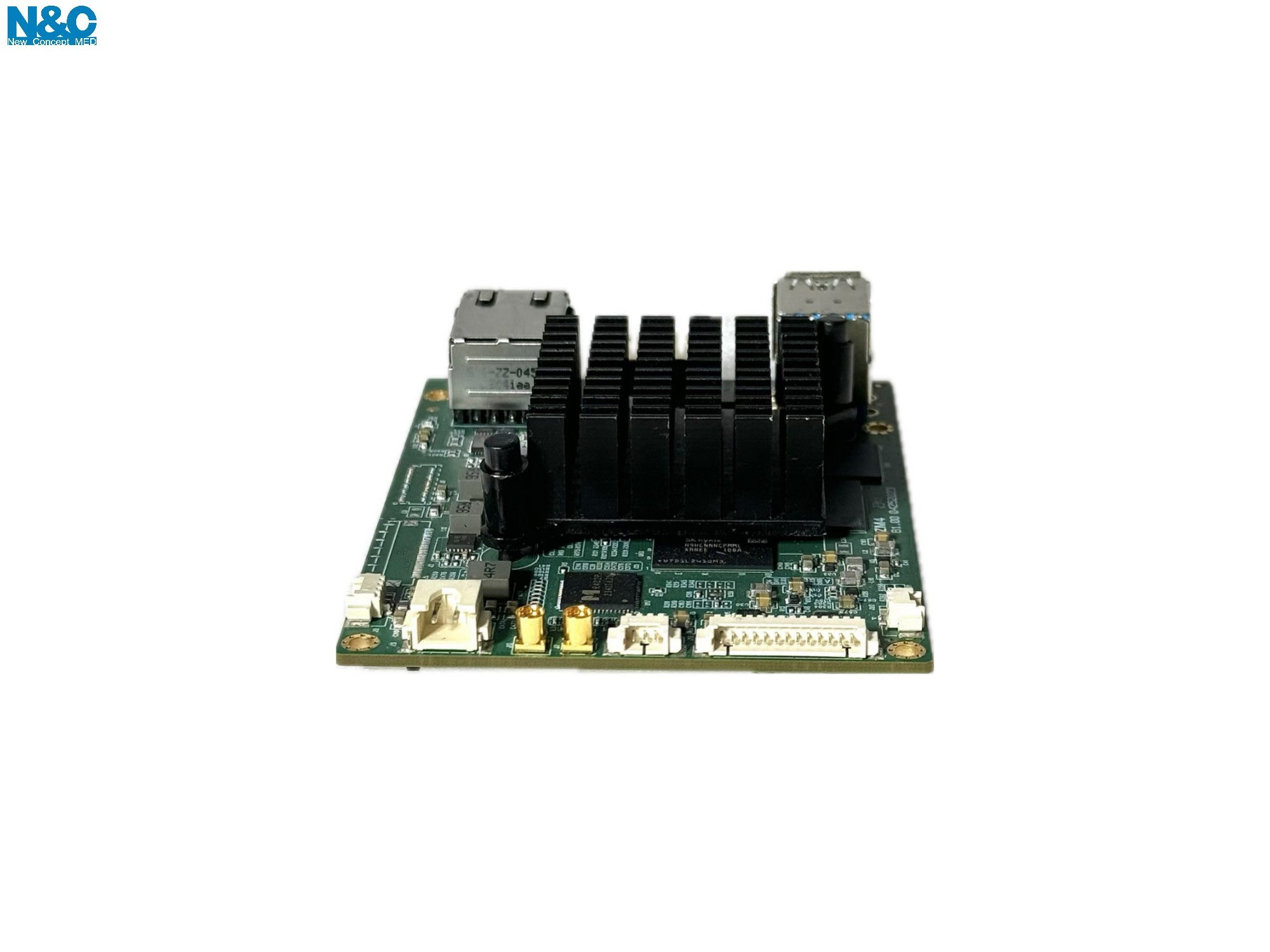

Product Name |
4K PCBA Board with recording |
|
Model |
NC-4B |
|
Image Sensor Size |
1/1.8" inches |
|
Image Sensor Type |
CMOS |
|
Scanning Method |
Progressive scanning |
|
Frame |
60fps |
|
Effective Pixels |
3840(H)*2160(V) |
|
Horizontal Resolution |
≥1700 Line |
|
Vertical Resolution |
≥1200 Line |
|
Luminance Response |
Linear fit coefficient R2≥0.99 |
|
Signal-to-noise ratio |
50dB |
|
Spatial Frequency Response |
MTF50：38 C/°, MTF30：43 C/° |
|
Still Image Tolerance |
≥150 |
|
Minimum Illumination |
1LUX F1.2 |
|
Video Encoding |
H.265 |
|

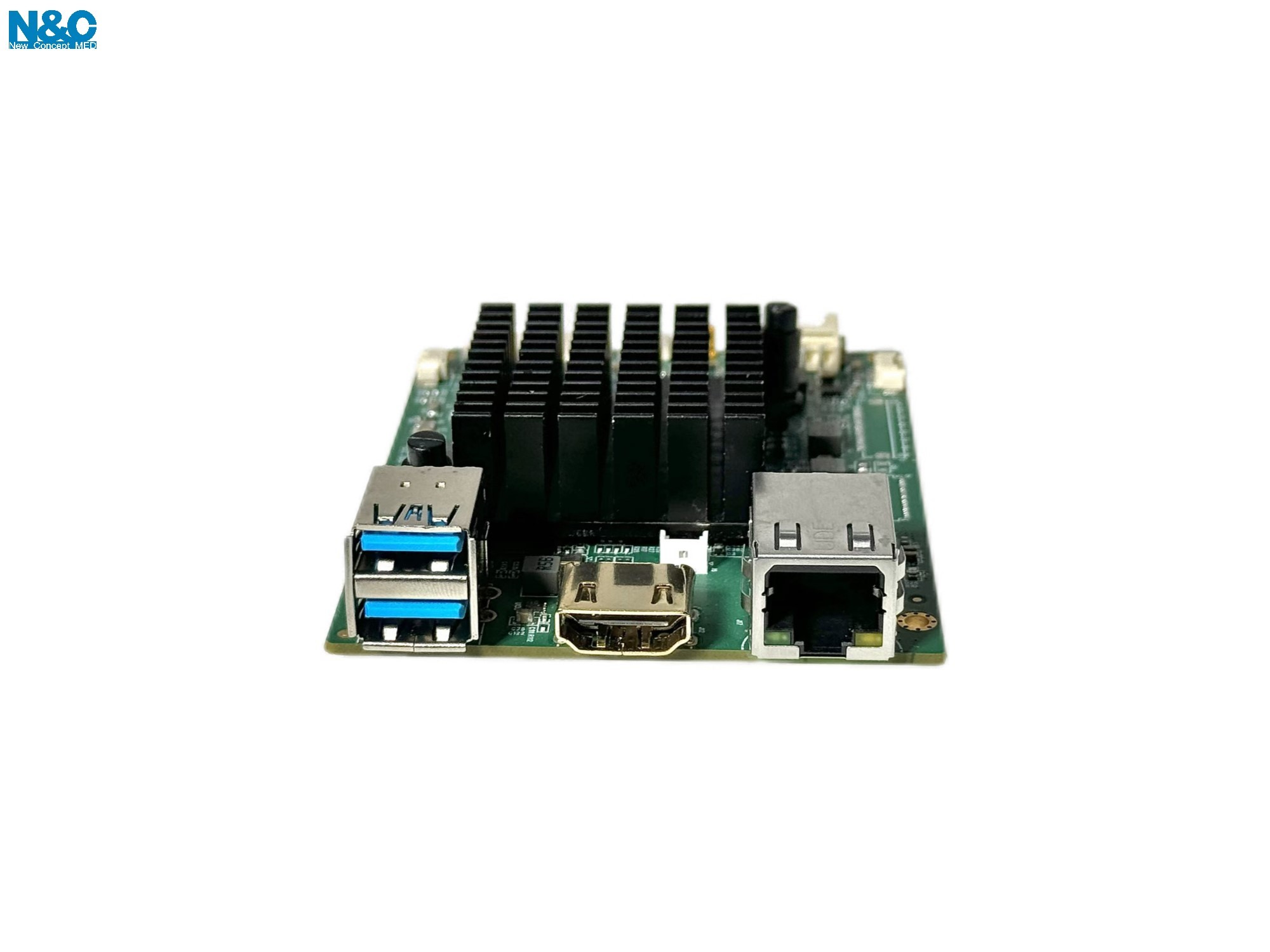

HDMI |
HDMI 2.0*1 |
|
RJ45 |
1000M bit/s |
|
USB |
USB 3.0*2 |
|
Power Supply |
DC12V |
|
Power Consumption |
6.216W（12V 518mA） |
|
Operating Temperature |
5℃～40℃ |
|
Operating Humidity |
30%～85% (Non-condensing) |
|
Atmospheric Pressure |
700～1060hPa |
|
Output Method |
HDMI、RJ45、USB |
