Features:
1. Key botton on camera head can be customized per user’s preference.
2. Capture picture&record video; playback directly on the camera.
3. Supporting video display with USB.
4. Mouse control: easy to operate and can modify the file name directly on the camera.
5. Four states display: convenient to compare the status of the lesion.
6. Accept OEM/ODM demand: camera appearance, function, port and keypad, etc.
|
MODEL |
NCM-AS180 |
|
Output Video |
16:9, 1920*1080P 60fps |
|
Effective Pixels |
≥ 2 Mega Pixels |
|
Scanning system |
Progressive Scanning |
|
Image settings |
AWB,Freeze,Zoom,Brightness,Color adjustment,… Etc. |
|
Record Format |
MP4 |
|
Record Device |
USB |
|
Image Sensor |
1/1.8’’ Sony Signal CMOS |
|
Camera Head Dimension |
Length: 114mm±0.5mm Diameter: 33.5mm±0.2mm |
|
Camera Head Weight |
380g |
|
Camera Sterilization |
Alcohol wipe disinfection and waterproof IPX 67 |
|
Camera Button |
AWB, Freeze, Bright+, Bright - |
|

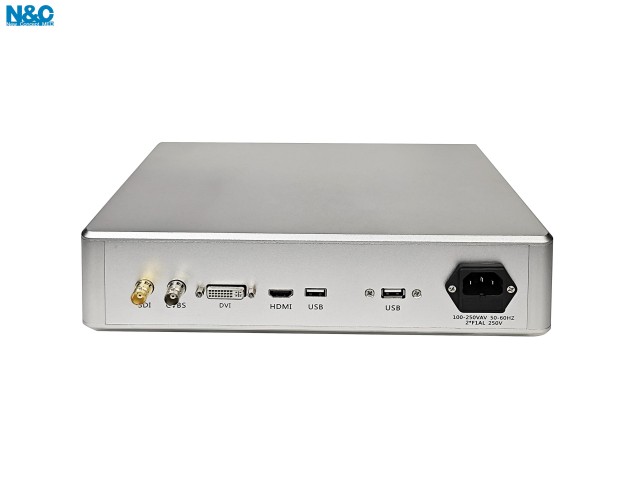

Processor Output |
HDMI+DVI+SDI+CVBS+USB |
|
Function |
Record video, capture image, playback video |
|
Processor Button |
AWB+Freeze+Record+Photo+Zoom |
|
Application |
Laparoscopy, E.N.T., Urology, Gynecology, Cystoscope, Arthroscopy |
